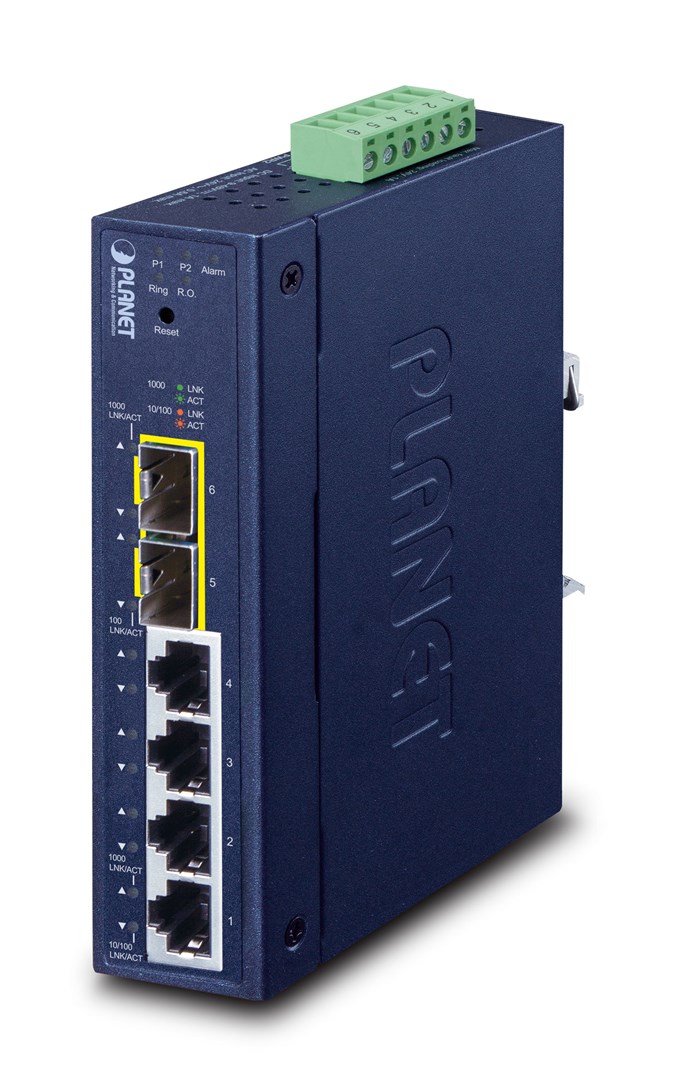

Upravljalnik PLANET IGS-4215-4T2S L2/L4 Gigabit Ethernet (10/100/1000 Mbps)

Opis

Upravljalnik za omrežja s 4 gigabitnimi Ethernet vrati in 2 SFP režama. Podpira L2/L4 upravljanje in ima LED indikatorje za status. Ohišje je kovinsko, primerno za montažo na DIN letev ali steno.

Specifikacije

Depth

87.8 mm

Width

32 mm

Height

135 mm

Weight

400 g

Throughput

8.9 Mpps

10G support

No

Full duplex

Yes

Half duplex

Yes

Switch type

Managed

Jumbo frames

9000

Power source

AC/DC

Reset button

Yes

Switch layer

L2/L4

VLAN support

Yes

Cloud-managed

Yes

ARP inspection

Yes

Auto MDI/MDI-X

Yes

LED indicators

Yes

Product colour

Blue

Wall mountable

Yes

Number of VLANs

4096

Housing material

Metal

DIN rail mounting

Yes

MAC address table

8000 entries

Multicast support

Yes

Store-and-forward

Yes

Switching capacity

12 Gbit/s

Jumbo frames support

Yes

Networking standards

IEEE 802.3ad, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1x, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3u, IEEE 802.1D, IEEE 802.3z, IEEE 802.3az, IEEE 802.1ab

Web-based management

Yes

MAC address filtering

Yes

Spanning tree protocol

Yes

Power over Ethernet (PoE)

No

Storage temperature (T-T)

-40 - 85 °C

Operating temperature (T-T)

-40 - 75 °C

Installed SFP modules quantity

2

Storage relative humidity (H-H)

5 - 95%

MAC address auto-aging supported

Yes

Quality of Service (QoS) support

Yes

Operating relative humidity (H-H)

5 - 95%

International Protection (IP) code

IP30

MAC address auto-learning supported

Yes

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Basic switching RJ-45 Ethernet ports quantity

4
