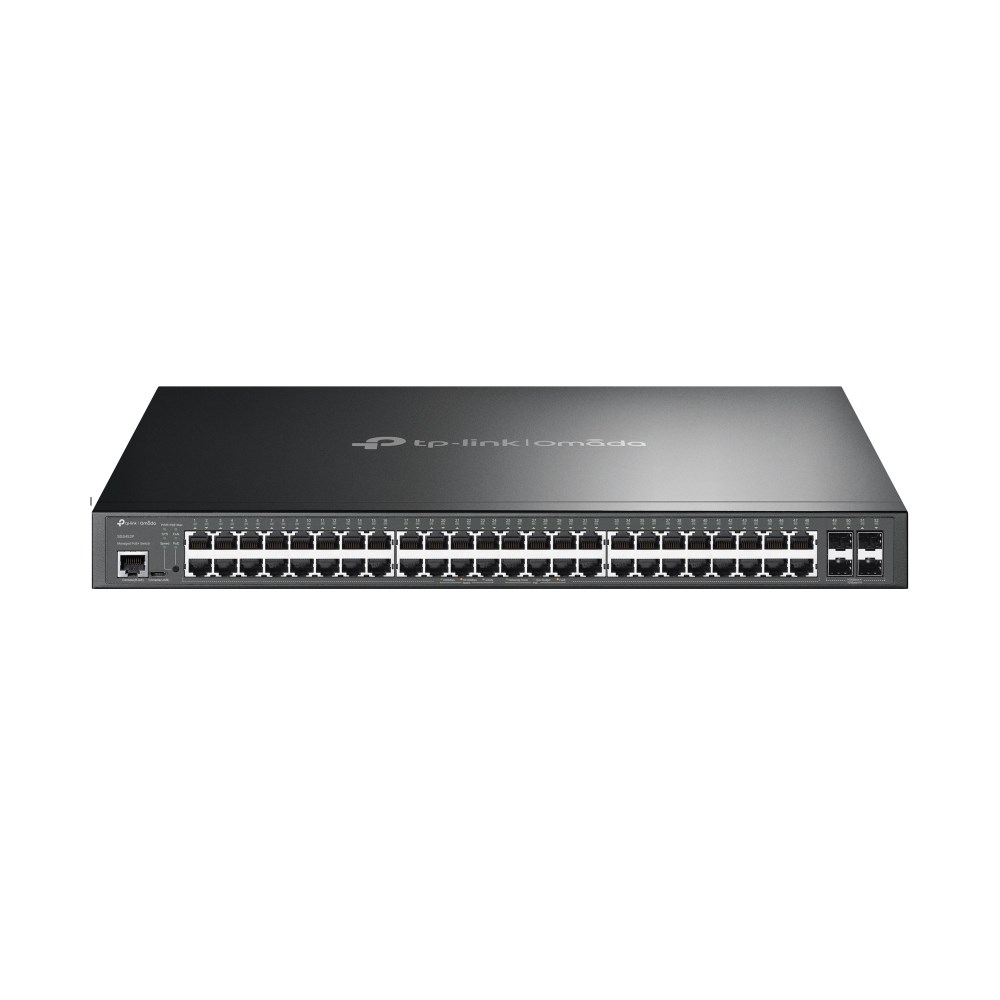

TP-Link Omada 52-portno L2+ upravljano stikalo Gigabit Ethernet s 48-portnim PoE+

Opis

Napredno upravljano L2+ stikalo TP-Link Omada s 52 gigabitnimi vrati, vključno s 48 PoE+ vrati. Omogoča napredne mrežne funkcije za poslovna okolja.

Specifikacije

Depth

330 mm

Width

440 mm

Height

44 mm

Manual

Yes

IP routing

Yes

10G support

No

Form factor

1U

MIB support

Yes

Switch type

Managed

Console port

RJ-45/micro-USB

Jumbo frames

9000

Package type

Box

Power source

AC

Reset button

Yes

Static route

Yes

Switch layer

L2/L3

VLAN support

Yes

Cloud-managed

Yes

DHCP features

DHCP snooping, DHCPv6 client, DHCP server, DHCPv6 snooping, DHCP client, DHCP relay

IGMP snooping

Yes

Rack mounting

Yes

Rate limiting

Yes

ARP inspection

Yes

Authentication

MAC-based authentication, Port-based authentication

LED indicators

Yes

Number of fans

3 fan(s)

Port mirroring

Yes

Product colour

Black

Cables included

AC

Forwarding rate

77.38 Mpps

Loop protection

Yes

Number of VLANs

4000

Power connector

AC-in jack

SSH/SSL support

Yes

AC input voltage

100 - 240 V

Heat dissipation

1584.08 BTU/h

Link aggregation

Yes

System event log

Yes

MAC address table

16000 entries

Multicast support

Yes

Quick start guide

Yes

Store-and-forward

Yes

AC input frequency

50/60 Hz

Switching capacity

104 Gbit/s

Password protection

Yes

Flow control support

Yes

Jumbo frames support

Yes

Management protocols

SNMPv1/v2c/v3, SNTP

Networking standards

IEEE 802.1w, IEEE 802.3x, IEEE 802.3ad, IEEE 802.1s, IEEE 802.1D, IEEE 802.1p

Packet buffer memory

12 MB

Policy-based routing

Yes

Virtual LAN features

Tagged VLAN, Protocol-based VLAN, MAC address-based VLAN, Private VLAN, Voice VLAN

Web-based management

Yes

Active link detection

Yes

Power supply included

Yes

Spanning tree protocol

Yes

Broadcast storm control

Yes

Ethernet LAN data rates

10,100,1000 Mbit/s

Number of static routes

48

Power consumption (max)

464.2 W

Access Control List (ACL)

Yes

BPDU filtering/protection

Yes

Power over Ethernet (PoE)

Yes

SFP module slots quantity

4

Storage temperature (T-T)

-40 - 70 °C

Head-of-line (HOL) blocking

Yes

Operating temperature (T-T)

0 - 40 °C

Storage relative humidity (H-H)

5 - 90%

Quality of Service (QoS) support

Yes

Operating relative humidity (H-H)

10 - 90%

GARP VLAN Registration Protocol (GVRP)

Yes

Total Power over Ethernet (PoE) budget

384 W

Power over Ethernet (PoE) power per port

30 W

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Basic switching RJ-45 Ethernet ports quantity

48

Power over Ethernet plus (PoE+) ports quantity

48
