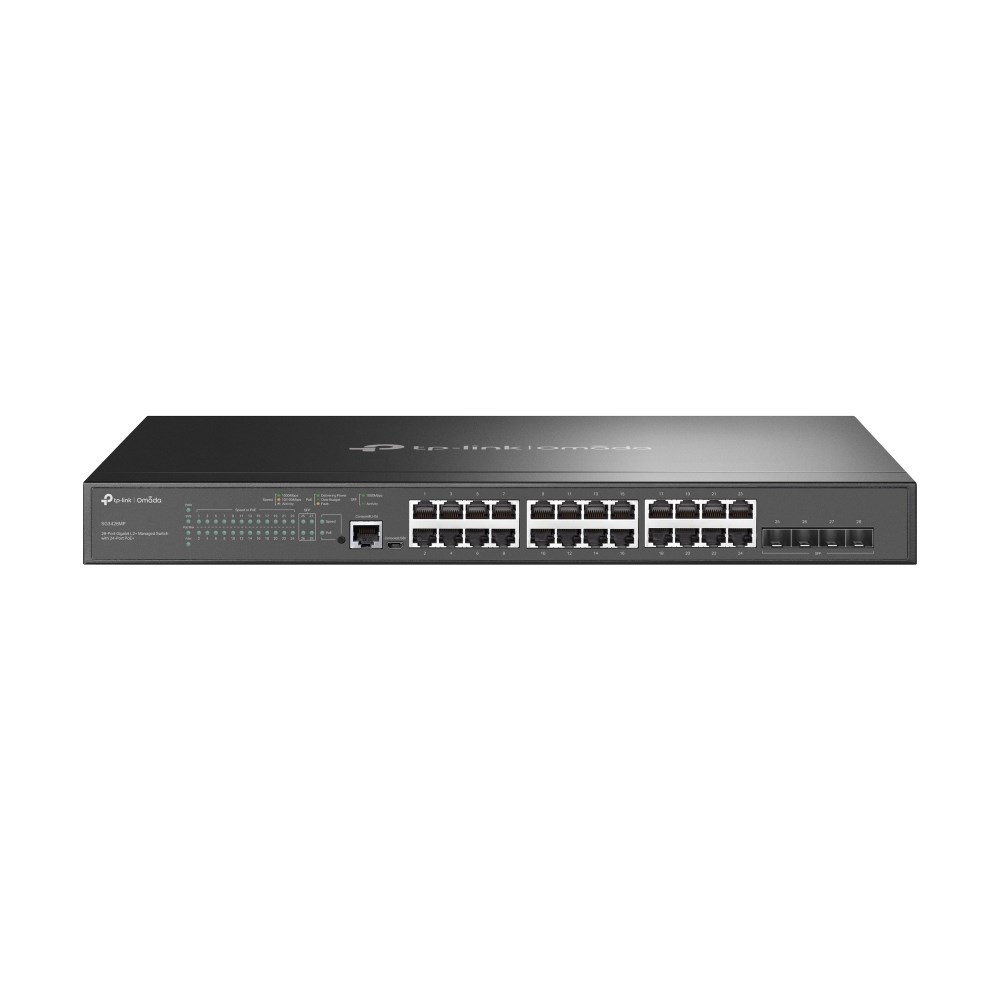

TP-Link Omada 28-portni Gigabit L2+ Managed stikalo s 24-portnim PoE+

Opis

Upravljano L2+ stikalo TP-Link Omada s 24 gigabitnimi PoE+ vrati in 4 SFP/SFP+ vmesniki, namenjeno profesionalnim omrežnim rešitvam. V črni barvi, primerno za montažo v omaro (1U).

Specifikacije

Depth

330 mm

Width

440 mm

Height

44 mm

Warnings

Ensure the unit is adequately ventilated during operation., Do not open the case or try to repair it yourself., The product is not suitable for disposal in the regular waste bin. Take your used electronic equipment to a recycling centre in accordance with local regulations.

IP routing

Yes

User guide

Yes

10G support

No

Form factor

1U

Switch type

Managed

Console port

RJ-45/Micro-USB

Jumbo frames

9000

Power source

AC

Switch layer

L2+

VLAN support

Yes

Cloud-managed

Yes

DHCP features

DHCP snooping, DHCPv6 client, DHCPv6 snooping, DHCP client, DHCP relay, DHCP server

IGMP snooping

Yes

Rack mounting

Yes

Rate limiting

Yes

ARP inspection

Yes

Authentication

MAC-based authentication, Port-based authentication

LED indicators

Yes

Number of fans

2 fan(s)

Port mirroring

Yes

Product colour

Black

Forwarding rate

41.66 Mpps

Loop protection

Yes

Number of VLANs

4000

Power connector

AC-in jack

SSH/SSL support

Yes

AC input voltage

100 - 240 V

Heat dissipation

1637.14 BTU/h

Link aggregation

Yes

System event log

Yes

MAC address table

16000 entries

Multicast support

Yes

Quick start guide

Yes

Store-and-forward

Yes

AC input frequency

50/60 Hz

Switching capacity

56 Gbit/s

IP-MAC-Port binding

Yes

Security algorithms

SSH, SSL/TLS

Flow control support

Yes

Jumbo frames support

Yes

Management protocols

SNMPv1/v2c/v3, LLDP/LLDP-MED

Networking standards

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3z

Packet buffer memory

12 MB

Static port security

Yes

Virtual LAN features

Port-based VLAN, Tagged VLAN, Voice VLAN, MAC address-based VLAN, Private VLAN

Web-based management

Yes

Active link detection

Yes

MAC address filtering

Yes

Power supply included

Yes

Spanning tree protocol

Yes

Broadcast storm control

Yes

Ethernet LAN data rates

10,100,1000 Mbit/s

Power consumption (max)

480.1 W

Access Control List (ACL)

Yes

BPDU filtering/protection

Yes

Power over Ethernet (PoE)

Yes

SFP module slots quantity

4

Storage temperature (T-T)

-40 - 70 °C

Head-of-line (HOL) blocking

Yes

Operating temperature (T-T)

0 - 45 °C

Storage relative humidity (H-H)

5 - 90%

Quality of Service (QoS) support

Yes

Operating relative humidity (H-H)

10 - 90%

Copper ethernet cabling technology

10BASE-T, 1000BASE-T

Configuring Location Settings (CLI)

Yes

GARP VLAN Registration Protocol (GVRP)

Yes

Total Power over Ethernet (PoE) budget

384 W

Gigabit Ethernet (copper) ports quantity

24

Power over Ethernet (PoE) power per port

30 W

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Export Control Classification Number (ECCN)

EAR99

Basic switching RJ-45 Ethernet ports quantity

24

Power over Ethernet plus (PoE+) ports quantity

24
