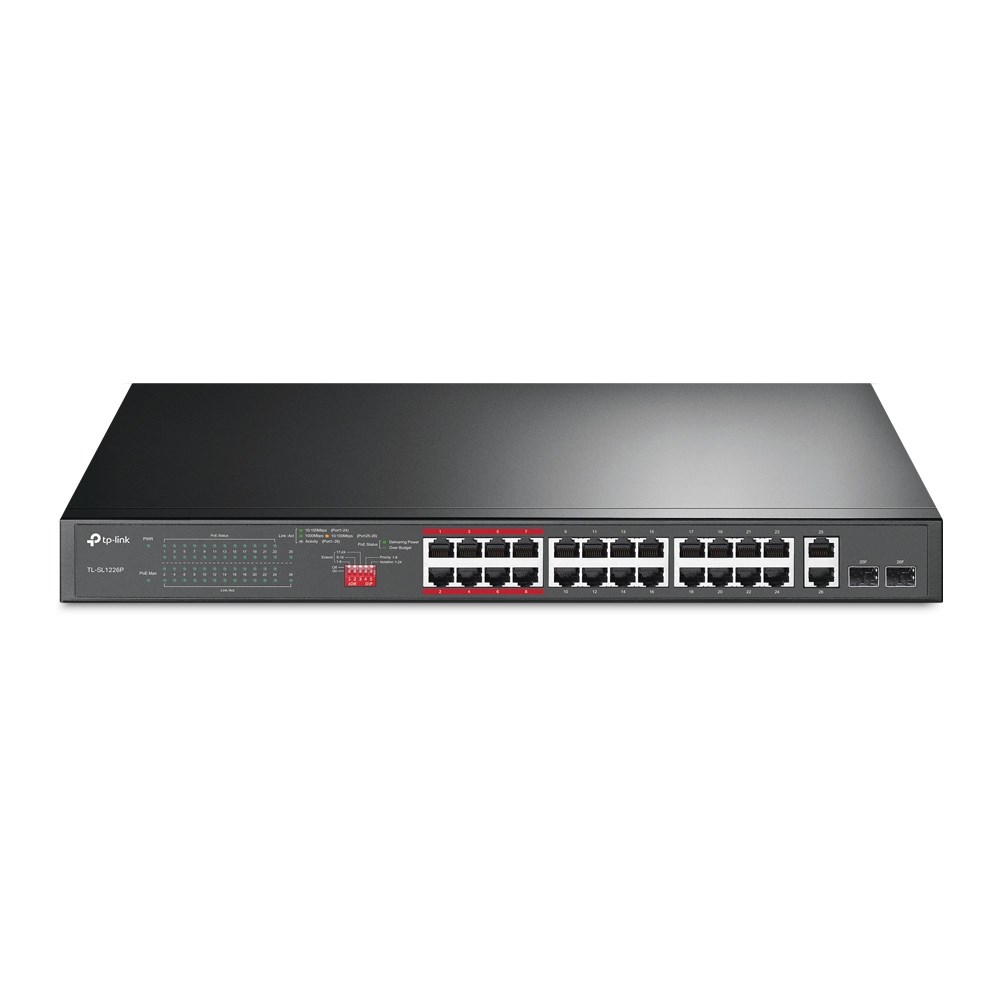

TP-Link 24-portni 10/100Mbps + 2-portni Gigabit Unmanaged PoE+ preklopnik

Opis

Upravljajte svoja omrežja z 24 10/100Mbps PoE+ vrati in dodatnimi 2 Gigabit porti za hitrejše povezave. Idealno za sisteme nadzora in omrežne naprave.

Specifikacije

Depth

180 mm

Width

440 mm

Height

44 mm

Warnings

Ensure the unit is adequately ventilated during operation., The product is not suitable for disposal in the regular waste bin. Take your used electronic equipment to a recycling centre in accordance with local regulations., Do not open the case or try to repair it yourself.

10G support

No

Form factor

1U

Switch type

Unmanaged

Jumbo frames

10000

Power source

AC

Package depth

528 mm

Package width

250 mm

Rack mounting

Yes

Auto MDI/MDI-X

Yes

LED indicators

Yes

Number of fans

2 fan(s)

Package height

80 mm

Package weight

3.02 kg

Product colour

Grey

Rack mount kit

Yes

Forwarding rate

6.54 Mpps

AC input voltage

100 - 240 V

Auto-negotiation

Yes

Heat dissipation

1002.54 BTU/h

MAC address table

8000 entries

Quick start guide

Yes

Store-and-forward

Yes

Switching capacity

8.8 Gbit/s

Jumbo frames support

Yes

Networking standards

IEEE 802.3x, IEEE 802.3at, IEEE 802.3af

Packet buffer memory

4.1 MB

Power supply included

Yes

Traffic classification

Yes

Power consumption (max)

281 W

Combo SFP ports quantity

2

Power over Ethernet (PoE)

Yes

Storage temperature (T-T)

-40 - 70 °C

Harmonized System (HS) code

85176990

Operating temperature (T-T)

0 - 50 °C

Storage relative humidity (H-H)

5 - 90%

Operating relative humidity (H-H)

10 - 90%

Copper ethernet cabling technology

100BASE-TX, 1000BASE-T, 10BASE-T

Fast Ethernet (copper) ports quantity

24

Total Power over Ethernet (PoE) budget

250 W

Gigabit Ethernet (copper) ports quantity

2

Power over Ethernet (PoE) power per port

30 W

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Basic switching RJ-45 Ethernet ports quantity

26

Power over Ethernet plus (PoE+) ports quantity

24
