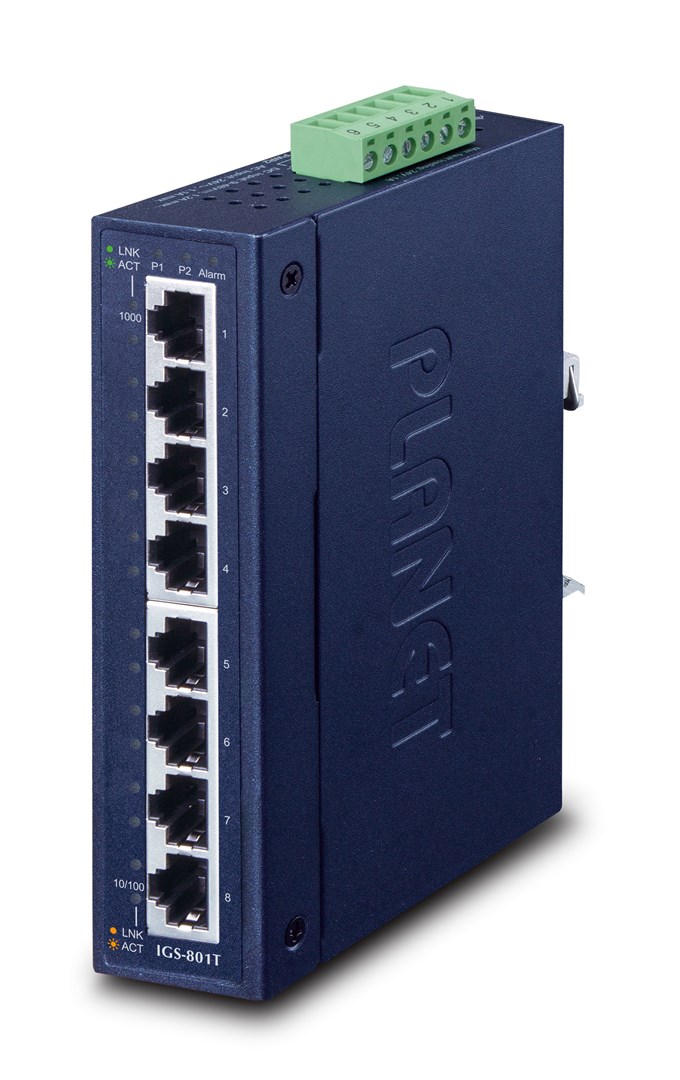

PLANET IGS-801T neupravljano L2 Gigabit Ethernet omrežno stikalo

Opis

Neupravljano L2 Gigabitno omrežno stikalo PLANET IGS-801T z IP30 zaščito. Kovinsko ohišje omogoča montažo na steno ali DIN letev. Poraba 6.72 W. Primeren za delovanje v širokem temperaturnem razponu.

Specifikacije

Depth

87 mm

Width

32 mm

Height

135 mm

Weight

476 g

Throughput

11.9 Mpps

10G support

No

Full duplex

Yes

Switch type

Unmanaged

Jumbo frames

9000

Switch layer

L2

Rack mounting

No

Auto MDI/MDI-X

Yes

Product colour

Blue

Wall mountable

Yes

Auto-negotiation

Yes

Heat dissipation

23 BTU/h

Housing material

Metal

DIN rail mounting

Yes

MAC address table

4000 entries

Store-and-forward

Yes

Switching capacity

16 Gbit/s

Terminal block port

Yes

Flow control support

Yes

Jumbo frames support

Yes

Networking standards

IEEE 802.3u, IEEE 802.3x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az

Cable types supported

Cat4, Cat5, Cat5e, Cat6, Cat3

Broadcast storm control

Yes

Power over Ethernet (PoE)

No

Storage temperature (T-T)

-40 - 75 °C

Harmonized System (HS) code

85176990

Operating temperature (T-T)

-40 - 75 °C

Power consumption (typical)

6.72 W

Storage relative humidity (H-H)

5 - 95%

MAC address auto-aging supported

Yes

Quality of Service (QoS) support

Yes

Operating relative humidity (H-H)

5 - 95%

Copper ethernet cabling technology

1000BASE-T, 100BASE-TX, 10BASE-T

International Protection (IP) code

IP30

MAC address auto-learning supported

Yes

Redundant power supply (RPS) support

Yes

Gigabit Ethernet (copper) ports quantity

8

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Basic switching RJ-45 Ethernet ports quantity

8
